1. Monolithic Tower Massing & Cassette Rainscreen Envelope [ARC-ENV-02_30]

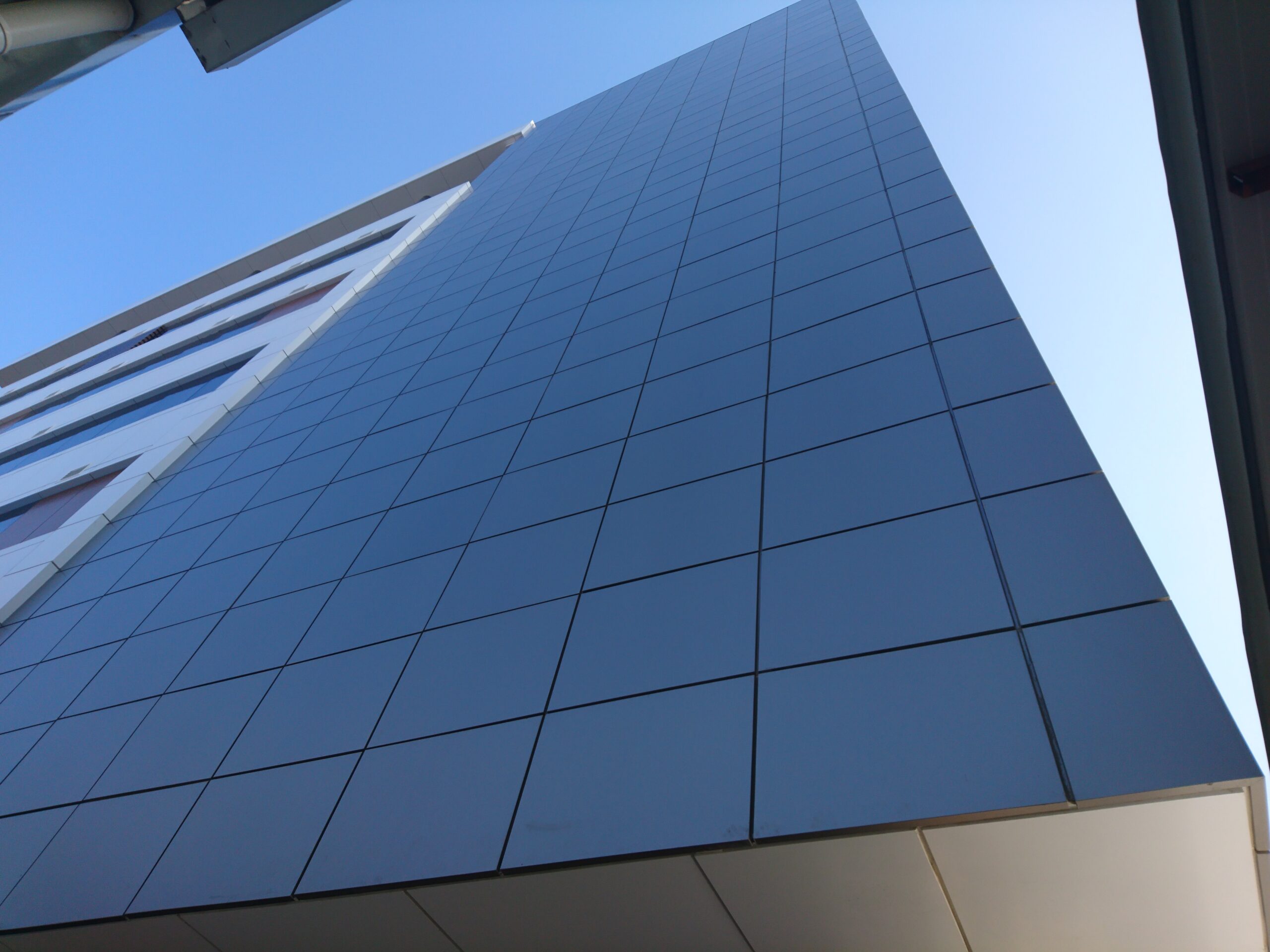

ARC-ENV-02_30: Low-angle perspective of high-rise tower clad in dark aluminum composite/cassette panels rising skyward. Demonstrates planar continuity, joint rhythm, and corner transition geometry.

The tower envelope in ARC-ENV-02 represents a synthesis of high-performance curtain wall modules and rear-ventilated aluminum cassette cladding. At high altitudes, dynamic wind loads and severe climatic gradients impose extreme demands on perimeter integrity. The cassette substructure utilizes heavy-gauge extruded aluminum brackets designed to absorb thermal expansion cycles without inducing secondary stresses into the building’s structural concrete framework.

2. Unitized Curtain Wall Glazing & Exterior Steel Fin Brackets [ARC-ENV-02_02]

ARC-ENV-02_02: High-rise curtain wall glazing interface with exterior diagonal steel fins under clear sky conditions. Illustrates structural steel-to-aluminum thermal isolation nodes and external shade articulation.

The exterior diagonal steel fin framework anchored to the façade units provides crucial solar shading while maintaining unobstructed panoramic views. The critical engineering challenge resolved in this interface is the direct connection of heavy exterior structural steel to the aluminum mullions. By incorporating high-density polyamide thermal isolation pads and stainless steel sleeve connectors, galvanic corrosion is completely prevented while maintaining structural deflection tolerances under peak wind gusts.

3. Hand-Drafted Detail Engineering & Rainscreen Cross-Section [ARC-DET-03_SK13]

ARC-DET-03_SK13: Original hand-drawn 1:5 / 1:10 scale technical façade detail cross-section, authentically signed by Mim. G. Varol. Depicts double glazing units, thermal insulation barriers, BoardeX sub-framing, and 60/60 steel anchor brackets.

In an era dominated by automated parametric drafting, the authentic hand-drawn technical detail remains the ultimate benchmark of architectural craftsmanship and engineering foresight. As drafted by Mim. G. Varol, section ARC-DET-03_SK13 delineates:

• Thermal Envelope Continuity: Unbroken alignment of polyamide thermal breaks between the double-glazed insulated unit (IGU) and the ventilated cassette perimeter.
• Moisture Management & Pressure Equalization: Dedicated drainage channels, weep paths, and EPDM gasket sealing that prevent capillary moisture intrusion even during extreme negative pressure differentials.
• Anchorage & Dead-Load Distribution: Precision alignment of 60×60 structural angle brackets tied into the primary slab edge, allowing 3D slotted adjustability during installation.

TÜRKÇE TEKNİK ÖZET: YÜKSEK YAPI KABUK VE DETAY MÜHENDİSLİĞİ

ARC-ENV-02 ve ARC-DET-03 portföy çalışmaları; yüksek katlı kule geometrisinin (ARC-ENV-02_30) yekpare kaset cephe panelleri ve dış mekan diyagonal çelik güneş kırıcı tırnakları (ARC-ENV-02_02) ile entegrasyonunu belgelemektedir. Bu karmaşık sistemin milimetrik çözümü, Mim. G. Varol imzalı el çizimi teknik detay kesitinde (ARC-DET-03_SK13) açıkça ortaya konmaktadır.

Sistemde; CWCT hava ve su sızdırmazlık standartları, 1200 Pa dinamik su testi dayanımı, BoardeX üzeri havalandırmalı yağmur bariyeri ve EPDM sızdırmazlık katmanları el işçiliği titizliği ile çözülmüş ve şantiye imalatlarına kusursuz şekilde aktarılmıştır.
