1. The Architectural Mandate vs. Client Specification

Architectural detailing reaches its highest maturity when resolving conflicting program requirements into an elegant, unified spatial hierarchy. In this project, the architectural office advocated for an uncompromising “Less is More” ethos—stripping away decorative trims, false ceilings, and superficial encasements to expose pure structural alignment. Simultaneously, the client prioritized premium, low-maintenance longevity, expressing a strong preference for architectural-grade stainless steel.

Rather than adopting a blanket material treatment across all zones, the project established a rigorous material dualism:

• Public & Pedestrian Circulation: Where human touch, tactile safety, and aesthetic prestige intersect, brushed marine-grade stainless steel governs every transition.
• Technical & Mechanical Utility Zones: Where structural endurance, safety compliance, and maintenance efficiency reign supreme, heavy-duty hot-dip galvanized steel delivers unadorned industrial integrity.

2. Public Circulation: Tactile Hygiene, Ergonomics & Minimalist Elegance

In shared staircases and primary circulation routes, the handrail is the only physical point of contact between occupant and building. The specification demanded not only absolute structural rigidity under crowd push-loads, but an elevated standard of clinical hygiene and visual timelessness.

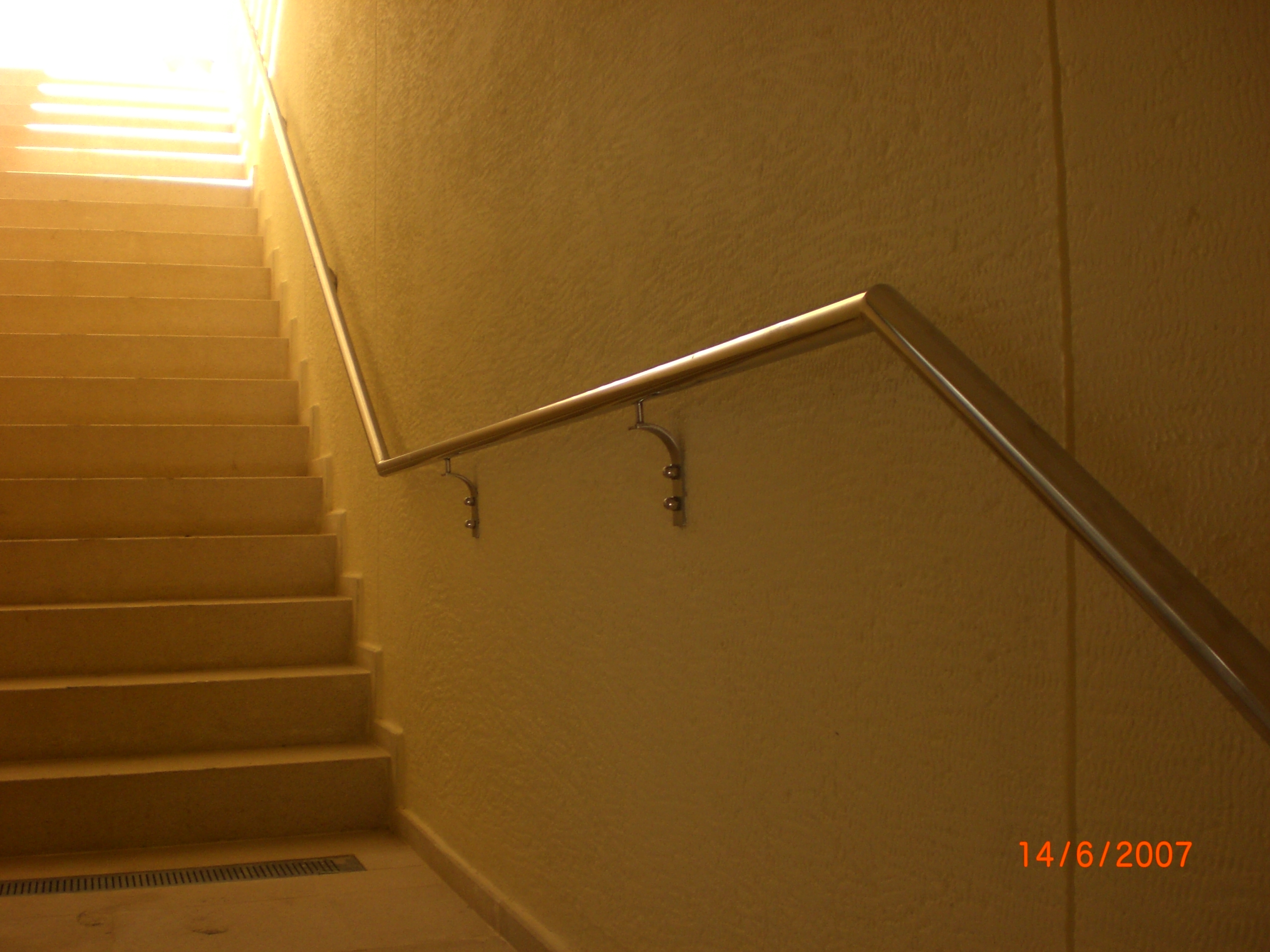

ARC-MOD-08_14: Interior public staircase featuring a continuous brushed stainless steel handrail mounted on custom-machined curved standoff brackets. The satin micro-finish prevents visible finger smudges while ensuring non-porous antimicrobial hygiene along high-traffic routes.

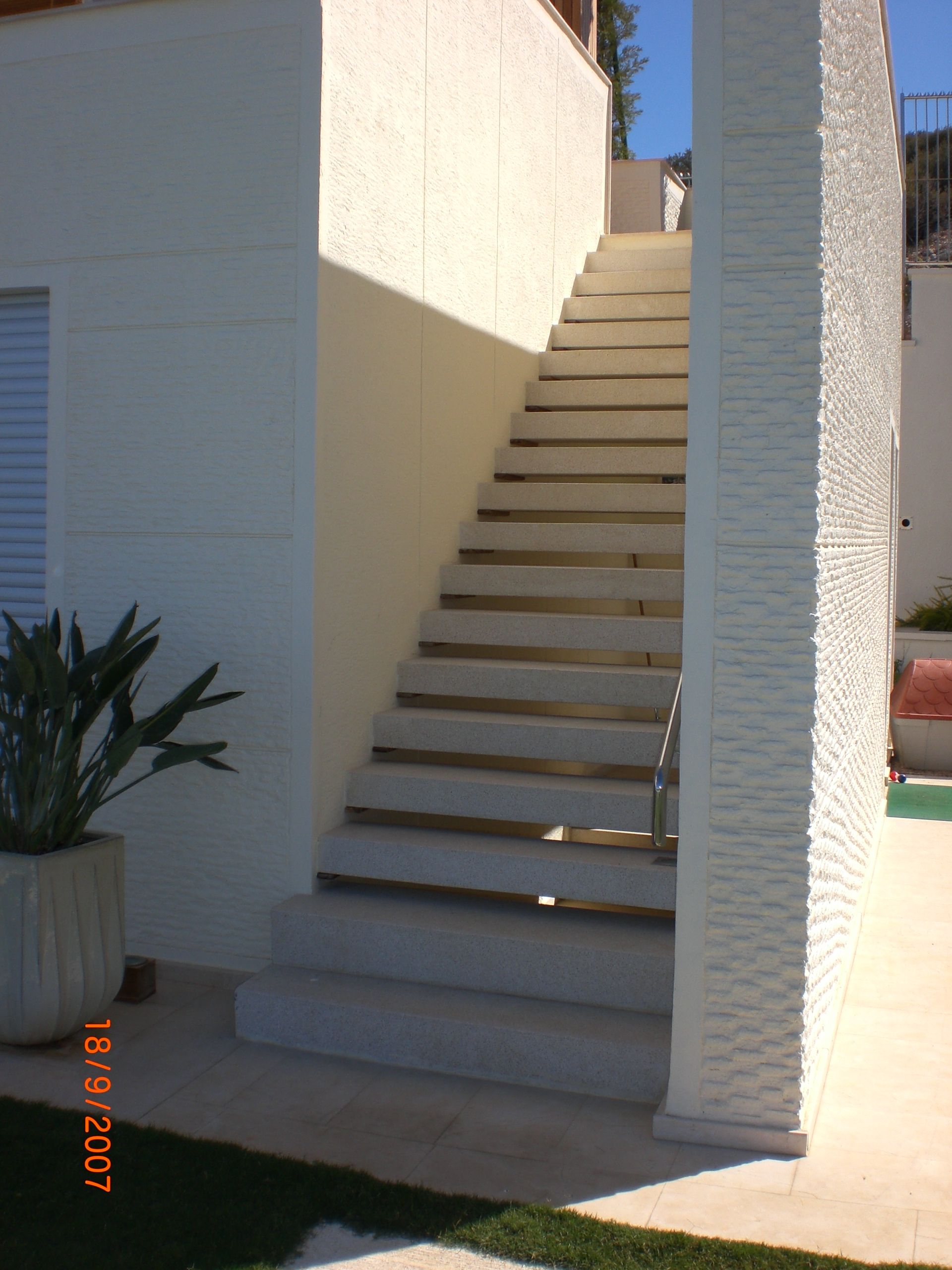

ARC-MOD-08_19: Exterior architectural staircase with cantilevered stone treads and shadow-gap reveals, integrated with marine-grade stainless steel safety railing against white textured stucco. The alloy resists airborne salt spray and thermal cycling with zero corrosion.

By anchoring the handrail via bespoke standoffs directly into structural masonry, the design eliminates vertical baluster visual clutter, reinforcing the uninterrupted flow of light and shadow across the warm travertine and textured wall surfaces.

3. Technical Utility Zones: Function Over Form & Hot-Dip Galvanized Resilience

In service zones, mechanical equipment accessways, and roof service passages, architectural pretense is deliberately discarded in favor of pure functionality and industrial safety. Here, hot-dip galvanized structural steel (ISO 1461) was selected as the optimal engineering solution.

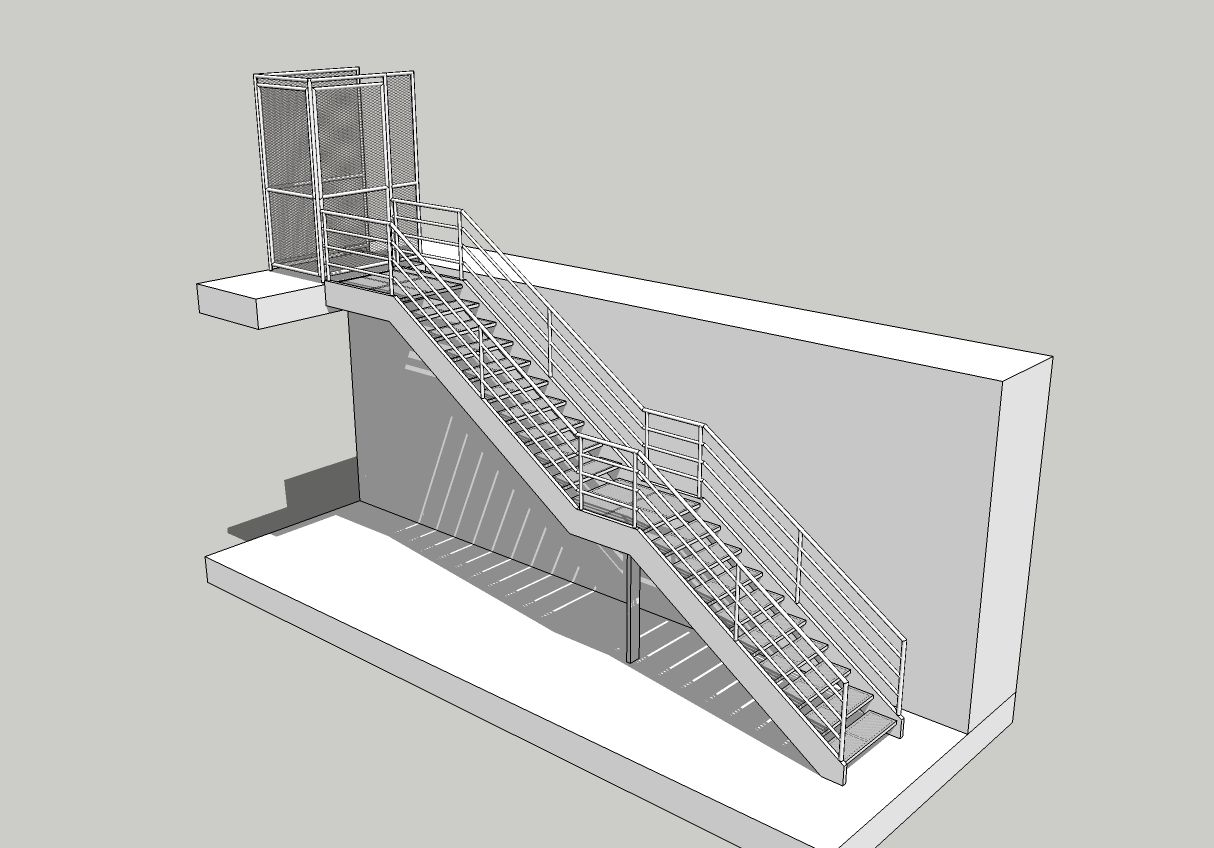

ARC-MOD-08_58: 3D SketchUp isometric model detailing the technical access staircase. Highlights the structural diagonal support framework, serrated grating treads for all-weather drainage, multi-rail perimeter balustrades, and a locked security mesh cage at the upper landing threshold.

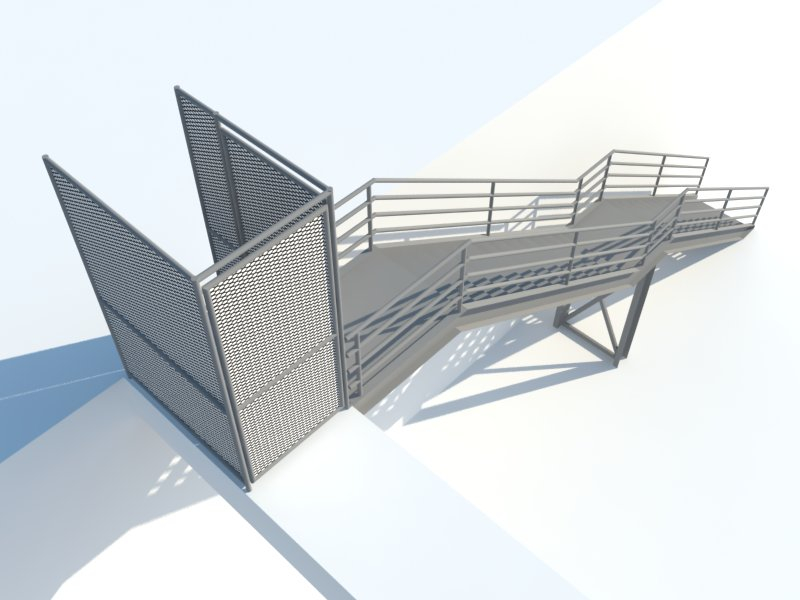

ARC-VIS-07_108: Photorealistic 3D CGI rendering verifying the hot-dip galvanized spangle finish, structural diagonal tube bracing, and wire mesh security enclosure under high-sunlight lighting conditions.

The zinc-iron metallurgical bond formed during hot-dip galvanization provides self-healing cathodic protection that withstands heavy equipment impact, abrasive maintenance footwear, and exterior weather exposure without requiring periodic repainting or chemical refinishing.

4. User-Centric Safety Solutions & Timeless Lifecycle Longevity

Safety in this architectural framework is tailored directly to the human experience:

• Public Ergonomics: Continuous curved handrail returns eliminate hazardous catch points for bags and clothing, providing continuous, reassuring guidance for all age demographics.
• Technical Access Control: Full-height heavy-duty wire mesh enclosures at upper landings prevent unauthorized personnel entry into hazardous mechanical zones while preserving ventilation and sightlines.
• Multi-Decade Durability: Eliminating painted finishes removes the vulnerability of peeling, flaking, or chalking under UV exposure, guaranteeing that the building elements age gracefully and remain functionally sound for over 50 years.

TÜRKÇE TEKNİK ÖZET: MALZEME HİYERARŞİSİ VE FONKSİYONEL MİMARİ DETAYLANDIRMA

Bu çalışma; mimari ofisin “Less is More” (az çoktur) minimalist tasarım yaklaşımı ile işverenin uzun ömürlü ve prestijli malzeme beklentilerini buluşturan stratejik malzeme hiyerarşisini belgelemektedir. Genel ve kamusal sirkülasyon alanlarında (ARC-MOD-08_14 ve ARC-MOD-08_19), insan dokunuşu, hijyen ve zamansız estetiğin ön planda olduğu satin paslanmaz çelik (AISI 316) küpeşte sistemleri uygulanmıştır.

Buna karşılık servis ve teknik geçiş mahallerinde (ARC-MOD-08_58 ve ARC-VIS-07_108); estetik kaygılardan ziyade taşıma kapasitesi, kaydırmaz ızgara basamaklar ve kilitli güvenlik kafesi gibi katı fonksiyonel gereksinimlere odaklanılmış, bakım gerektirmeyen daldırma galvaniz çelik imalatlar tercih edilmiştir. Tasarım, boya ve kaplama ihtiyacını ortadan kaldırarak 50 yılı aşan bir kullanım ömrü ve zamansızlık kazanmıştır.
